DC Air Conditioner Installation Guide for Truck Sleeper Cabs

Installing a DC air conditioner in your truck sleeper cab is one of the best investments you can make for comfort and cost savings. This comprehensive guide walks you through the entire installation process, from planning to final testing.

Before You Begin

Skill Level & Time Required

• Difficulty: Moderate (DIY-friendly with basic tools)
• Time: 4-6 hours for first-time installation
• Skills needed: Basic electrical work, power tools, roof work
• Helper recommended: Yes (for lifting and positioning)

Safety Precautions

• ⚠️ Disconnect battery before electrical work
• ⚠️ Use proper fall protection when working on roof
• ⚠️ Wear safety glasses when cutting or drilling
• ⚠️ Work in well-ventilated area
• ⚠️ Follow all manufacturer instructions

Tools & Materials Needed

Tools Required

• Jigsaw or reciprocating saw
• Power drill with bits
• Wire strippers and crimpers
• Multimeter
• Caulking gun
• Screwdrivers (Phillips and flathead)
• Socket set
• Tape measure and marker
• Level
• Utility knife

Materials Needed

• DC air conditioner unit (B-COOL 5RM recommended)
• 6-8 AWG wire (12V) or 10-12 AWG (24V)
• 80-100A inline fuse or circuit breaker
• Wire terminals and connectors
• Butyl tape or rubber gasket
• Sikaflex or Dicor roof sealant
• Self-tapping screws
• Heat shrink tubing
• Zip ties for wire management

Step 1: Planning & Preparation

Choose Installation Location

Ideal roof location:

• Centered over sleeping area for even cooling
• Away from roof vents and hatches
• Clear of antenna mounts and solar panels
• Accessible from inside for wiring
• Structurally sound roof area

Verify Electrical System

• Confirm your truck voltage (12V or 24V)
• Check battery capacity (minimum 200 Ah recommended)
• Verify alternator output (120A+ recommended)
• Locate battery bank and plan wire routing

Measure Roof Opening

Most rooftop AC units require a 14" x 14" opening. If replacing an existing vent or fan:

• Measure existing opening
• Check if it matches AC unit requirements
• Plan for enlarging or reducing opening if needed

Step 2: Create Roof Opening

If installing in new location:

1. Mark the opening: Use template provided with AC unit or measure 14" x 14" square
2. Check for obstructions: Look inside cab to ensure no wiring, lights, or structure in the way
3. Drill pilot holes: One in each corner of marked square
4. Cut the opening: Use jigsaw from inside, cutting along marked lines
5. Smooth edges: File or sand any sharp edges
6. Clean area: Remove all debris and dust

If using existing opening:

• Remove old vent/fan and hardware
• Clean old sealant completely
• Inspect roof for damage or rust
• Repair any issues before proceeding

Step 3: Prepare Mounting Surface

1. Clean roof surface: Remove all dirt, grease, and old sealant
2. Apply butyl tape: Place around opening perimeter for waterproof seal
3. Test fit unit: Ensure outdoor unit sits flush and level
4. Mark screw holes: Use unit as template to mark mounting points

Step 4: Install Indoor Components

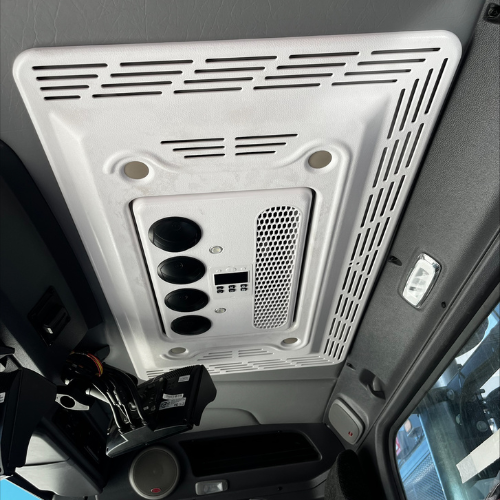

Mount Indoor Unit (Evaporator)

1. Position indoor unit in ceiling opening from inside
2. Ensure proper alignment with outdoor unit
3. Secure with provided mounting brackets
4. Connect refrigerant lines (if split system)
5. Attach drain hose (if applicable)

Install Control Panel

• Choose accessible location near sleeping area
• Mount control panel securely
• Route control wires to AC unit
• Connect according to wiring diagram

Step 5: Electrical Installation

Wire Sizing Chart

Wiring Steps

1. Disconnect batteries: Safety first!
2. Route power cables:
   • Run from battery bank to AC unit location
   • Use existing wire channels when possible
   • Avoid sharp edges and hot surfaces
   • Secure with zip ties every 12-18 inches
3. Install inline fuse:
   • Place within 18 inches of battery
   • Use 80-100A fuse for 60-75A AC unit
   • Ensure waterproof fuse holder
4. Connect to AC unit:
   • Positive (red) to positive terminal
   • Negative (black) to negative terminal or ground
   • Use proper crimp connectors
   • Apply heat shrink for protection
5. Ground connection:
   • Connect ground wire to truck chassis
   • Use clean, bare metal contact point
   • Apply anti-corrosion compound

Optional: Battery Isolator

Highly recommended to prevent draining starting batteries:

• Install between starting and house batteries
• Allows charging from alternator
• Prevents AC from draining starting power
• Cost: $50-$150

Step 6: Mount Outdoor Unit

1. Apply sealant: Generous bead of Sikaflex or Dicor on butyl tape
2. Position unit: Carefully lower outdoor unit onto roof opening
3. Align properly: Ensure even overhang on all sides
4. Press firmly: Compress sealant for good contact
5. Install mounting screws:
   • Use self-tapping screws provided
   • Don't overtighten (can crack housing)
   • Apply sealant to each screw head
6. Seal all edges: Run bead of sealant around entire perimeter
7. Smooth sealant: Use finger or tool for professional finish

Step 7: Final Connections & Testing

Pre-Power Checks

• ✅ All wiring connections secure and insulated
• ✅ No exposed wire or loose connections
• ✅ Fuse properly installed
• ✅ Ground connection solid
• ✅ Control panel connected
• ✅ Roof seal complete with no gaps

Power-Up Procedure

1. Reconnect batteries
2. Check voltage: Use multimeter at AC unit terminals (should read 12-14V or 24-28V)
3. Turn on AC: Use control panel
4. Listen for compressor: Should start within 3-5 seconds
5. Check airflow: Feel for cold air from vents
6. Monitor amp draw: Should be within specifications
7. Run for 30 minutes: Ensure stable operation

Leak Test

• Spray water on roof seal
• Check inside for any water intrusion
• Apply additional sealant if needed
• Retest after sealant cures

Step 8: Optimization & Fine-Tuning

Thermostat Settings

• Set to 72-74°F for optimal efficiency
• Avoid setting too cold (wastes power)
• Use sleep mode if available

Airflow Adjustment

• Adjust vents for even distribution
• Close vents in unused areas
• Use 12V fans to circulate air

Power Management

• Install battery monitor to track usage
• Set low-voltage cutoff (11.5V for 12V, 23V for 24V)
• Monitor charging system performance

Troubleshooting Common Issues

Unit Won't Turn On

• Check fuse - replace if blown
• Verify battery voltage (must be above 11V/22V)
• Inspect all wire connections
• Test control panel connection

Weak Cooling

• Clean air filters
• Check for refrigerant leaks
• Ensure adequate airflow around outdoor unit
• Verify proper insulation in cab

High Power Consumption

• Check for air leaks in cab
• Ensure thermostat set appropriately
• Clean condenser coils
• Verify compressor cycling properly

Water Leaks

• Inspect roof seal - reapply sealant if needed
• Check drain hose (if equipped)
• Ensure unit level on roof
• Verify gasket properly seated

Maintenance Schedule

Monthly

• Clean or replace air filters
• Check roof seal for cracks
• Inspect electrical connections
• Test operation

Quarterly

• Clean condenser coils
• Check refrigerant level (if accessible)
• Tighten mounting screws
• Inspect wiring for wear

Annually

• Professional refrigerant check
• Deep clean entire system
• Reseal roof if needed
• Test low-voltage protection

Professional Installation vs DIY

When to DIY

• ✅ You have basic electrical and mechanical skills
• ✅ You have the required tools
• ✅ You're comfortable working on your truck roof
• ✅ You want to save $400-$800

When to Hire a Pro

• ✅ You're not confident with electrical work
• ✅ Your truck has complex electrical systems
• ✅ You want warranty protection
• ✅ You need refrigerant work (requires certification)

Installation Costs Breakdown

Warranty Considerations

• B-COOL 5RM includes 2-year warranty
• DIY installation typically doesn't void warranty
• Keep all receipts and documentation
• Follow manufacturer installation instructions
• Register product after installation

Ready to Install Your DC Air Conditioner?

The B-COOL 5RM is designed for easy installation with:

• ✅ Standard 14"x14" roof opening
• ✅ Simple 2-wire connection
• ✅ Comprehensive installation manual
• ✅ All mounting hardware included
• ✅ Technical support available

Shop B-COOL 5RM Air Conditioner →

Need installation help? Contact our team for technical support or professional installer referrals in your area.
